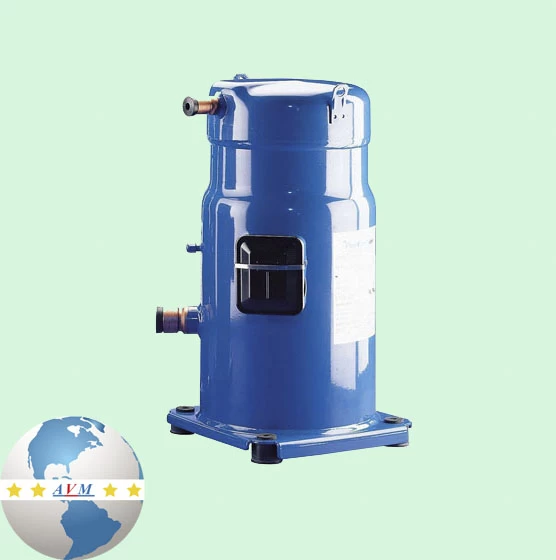

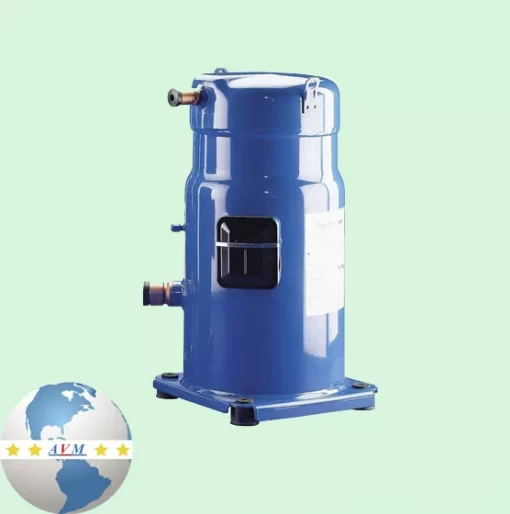

MÁY NÉN LẠNH DANFOSS MANEUROP MT36JG4EVE

[thong_tin_san_pham]

MÁY NÉN LẠNH DANFOSS MANEUROP MT36JG4EVE là dòng máy nén hiệu suất cao, vận hành ổn định, phù hợp cho các hệ thống lạnh công nghiệp. Thiết kế bền bỉ, dễ bảo trì, tối ưu cho các ứng dụng nhiệt độ trung bình và thấp.

[thongtin_chinhsach]

MÁY NÉN LẠNH DANFOSS MANEUROP MT36JG4EVE

Danh mục: Máy nén khí

TƯ VẤN

MÁY NÉN LẠNH DANFOSS MANEUROP MT36JG4EVE

Danh mục: Máy nén khí

Mô tả

Type	MT
Weight
01. Model number (on compressor nameplate)	MT36JG4EVE
02. Suction connection	1-1/4″ Rotolock
03. Discharge connection	1″ Rotolock
04. Suction connection with supplied sleeve	5/8″ ODF
05. Discharge connection with supplied sleeve	1/2″ ODF
06. Oil sight glass	Threaded
07. Oil equalisation connection	3/8” flare SAE
08. Oil drain connection	None
09. LP gauge port	Schrader
10. Internal pressure relief valve	30 bar / 8 bar
11. Cylinders	–
12. Swept volume	60.5 cm3/rev
13. Displacement at 50 Hz	10.5 m3/h
14. Displacement at 60 Hz	12.7 m3/h
15. Nominal speed at 50 Hz	2900 rpm
16. Nominal speed at 60 Hz	3600 rpm
17. Nominal voltage at 50 Hz	380-400V/3/50Hz
18. Nominal voltage at 60 Hz	460V/3/60Hz
19. Voltage range at 50 Hz	340-440 V
20. Voltage range at 60 Hz	414-506 V
21. Winding resistance (between phases)	5.57 Ohm
22. Winding resistance (between phases 1-2)	5.57 Ohm
23. Winding resistance (between phases 1-3)	5.57 Ohm
24. Winding resistance (between phases 2-3)	5.57 Ohm
25. Main winding resistance	–
26. Start winding resistance	–
27. Maximum Continuous Current (MCC)	9 A
28. Maximum Must Trip current (MMT)	–
29. Locked Rotor Current (LRA)	30 A
30. Motor protection	Internal overload protector
31. Net weight	25 kg
32. Oil charge	1 litre
33. Oil type	Mineral – 160P
34. Approved refrigerants	R22, R417A-160PZ
35. Refrigerant charge limit	3 kg
36. Approvals (CE)	CE certified
37. Approvals (UL)	UL certified (file SA6873)
38. Approvals (CCC)	CCC certified
39. Maximum system test pressure LP side	25 bar(g)
40. Maximum system test pressure HP side	30 bar(g)
41. Maximum differential test pressure	30 bar
42. Maximum number of starts per hour	12
43. Packaging	Industrial pack
44. Pack quantity	12
45. Parts shipped with compressor	Suction & Discharge solder sleeves, rotolock nuts and gaskets
46. Parts shipped with compressor	Mounting kit with grommets, bolts, nuts, sleeves and washers
